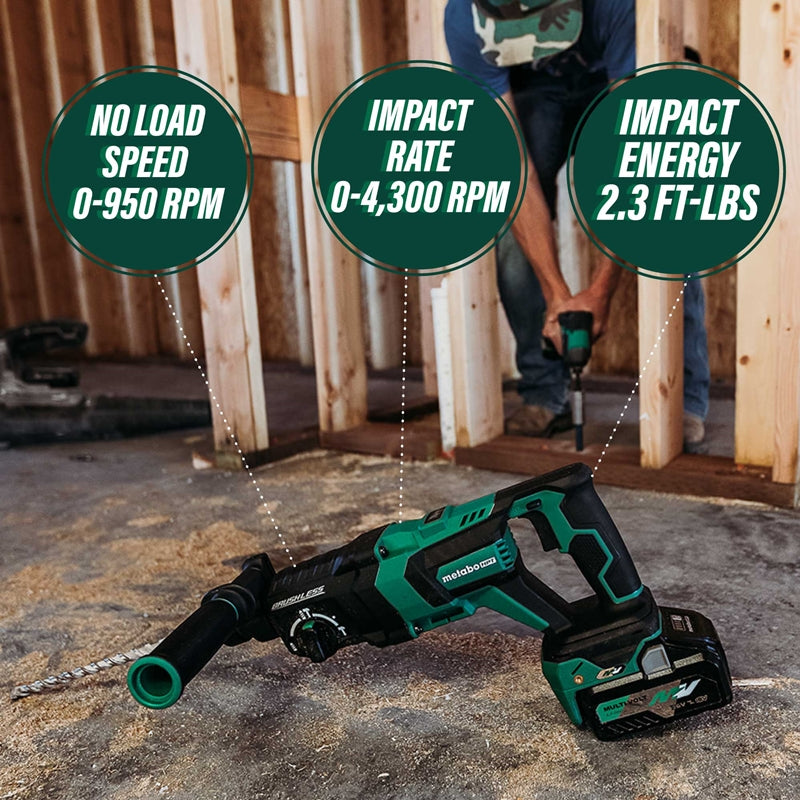

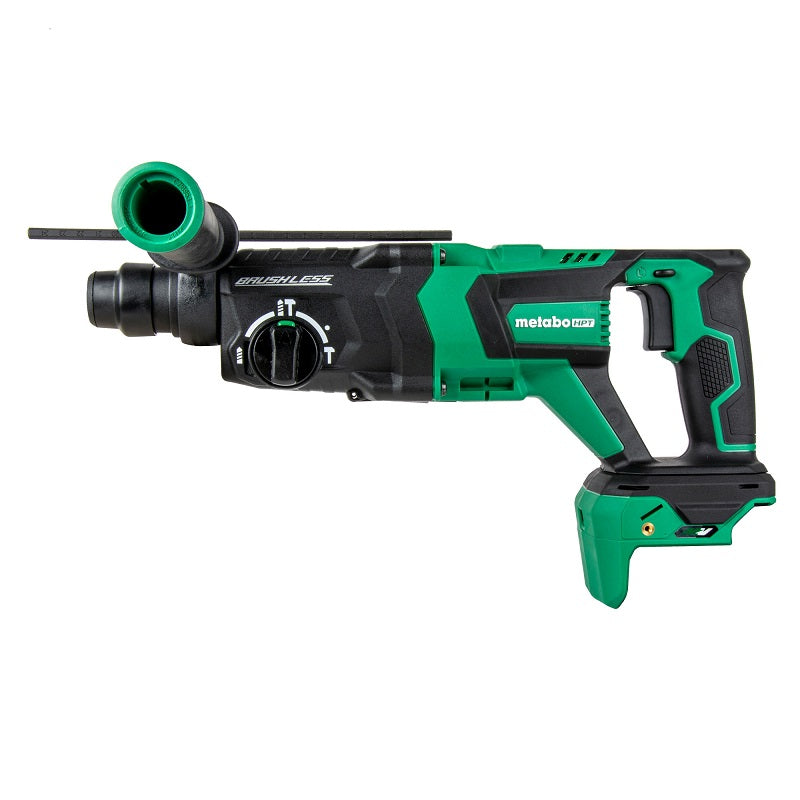

• POWER: High impact energy of 2.3 ft-lbs & 950 RPM / 4,300 BPM for high drilling speeds and great demolition performance

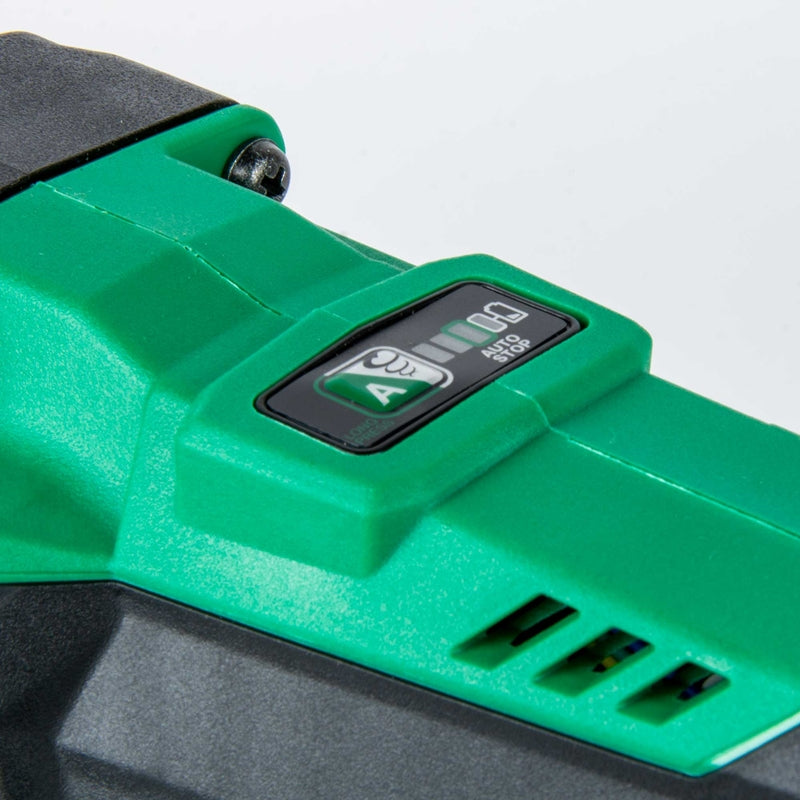

• AUTO STOP: Set your time for repetitive drilling

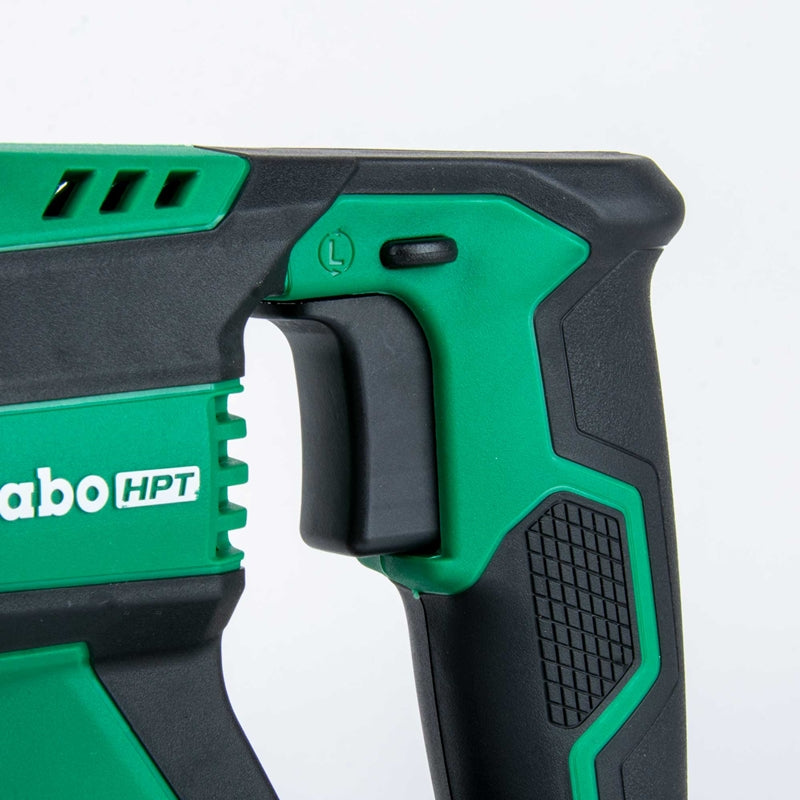

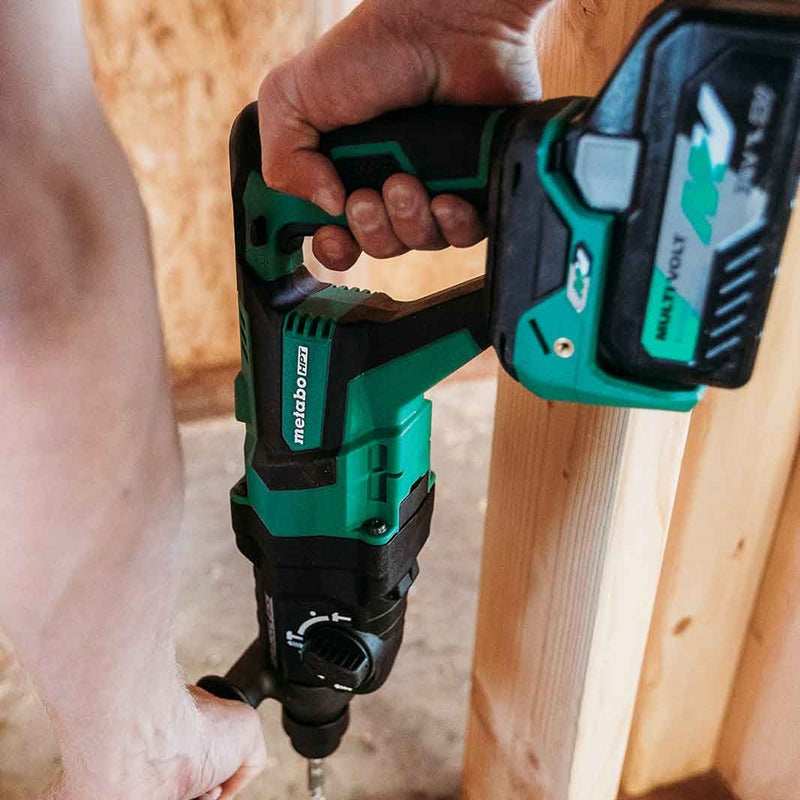

• ERGONOMIC: D-Handle makes drilling easier especially for overhead and downward drilling

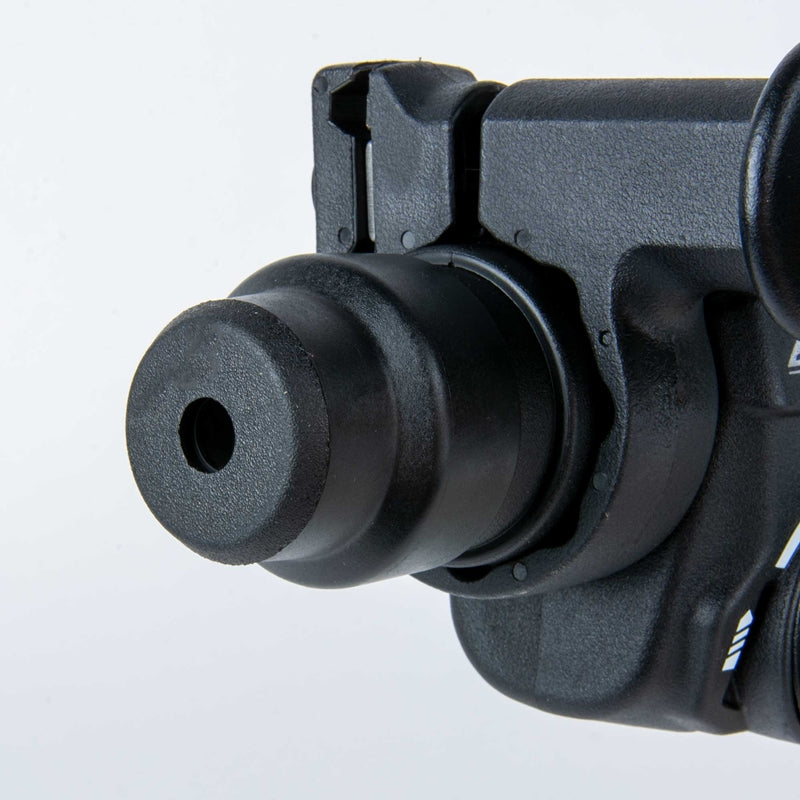

• BIT MOUNTING: One-push bit mounting makes changing out bits quick and easy

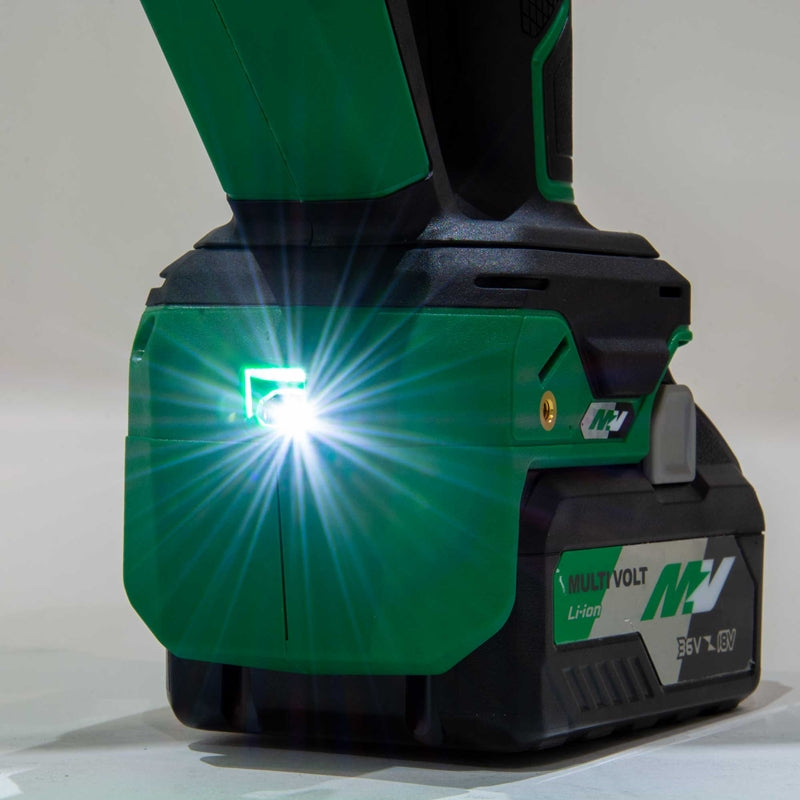

• ON-TOOL LED: Provides plenty of light in dark spaces
• VERSATILITY: Powered by a 36V MultiVolt battery (included) or AC adapter (sold separately)
• BRUSHLESS MOTOR TECHNOLOGY: For more run-time, increased power, extended durability with essentially no maintenance
• 2-STEP SPEED CONTROL: For faster work
• REACTIVE FORCE CONTROL: Senses the tool overload and stops rotation to ensure user safety and protect the tool motor and battery

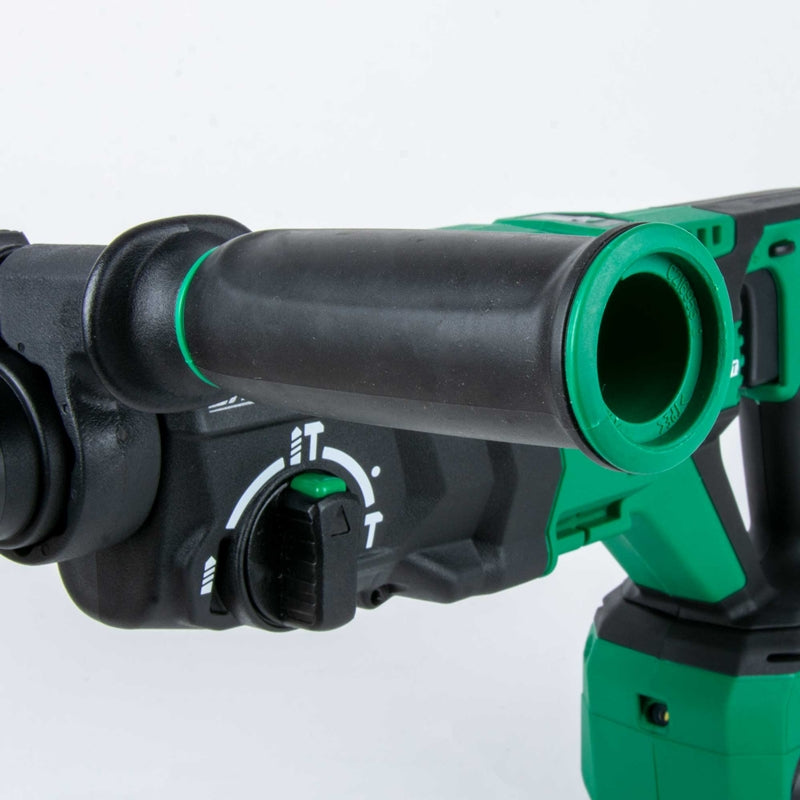

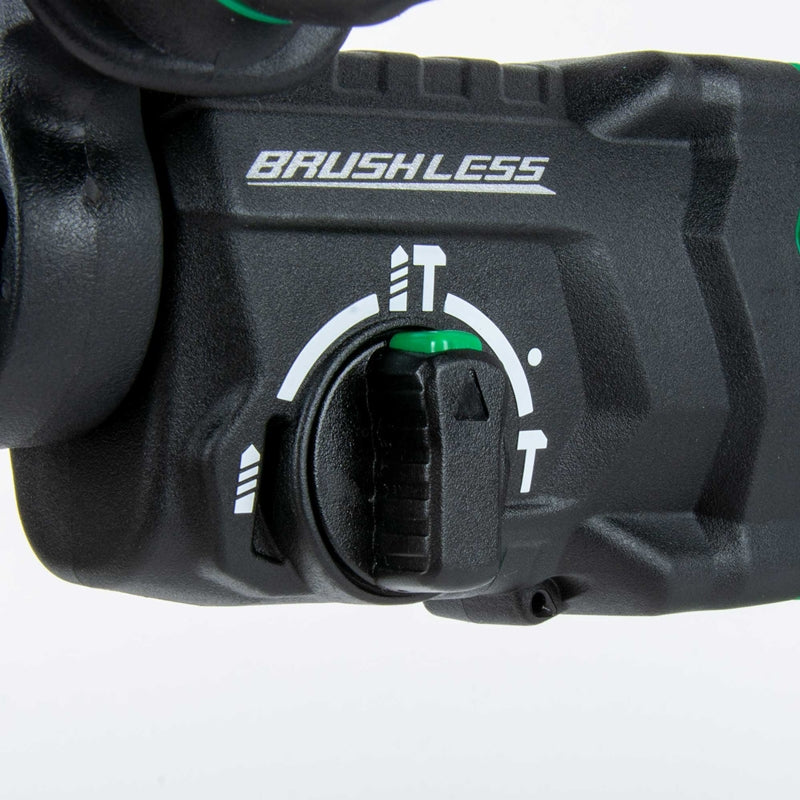

• 3 MODE SELECTOR: Hammer Drilling, Chipping and Drilling
• DUST EXTRACTOR SYSTEM: Featuring cyclonic separation method and HEPA filter for improved workability
• CLEANER AND SAFER ENVIRONMENT: Compatible with dust extractor attachment (376971) or Vacuums/Extractors (RP350DYH and RP3608DAQ4)
• DEPTH GAUGE: Consistently drill to desired depth
• LIGHTWEIGHT AND COMPACT: 8.8 lbs (with BSL36B18), 15.8"

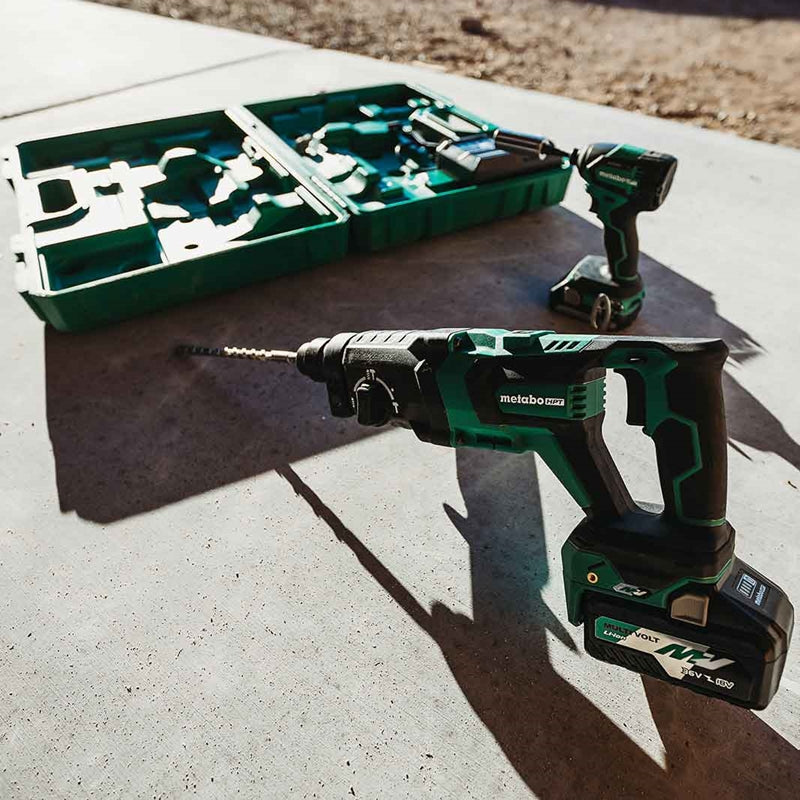

• INCLUDES: 18V/36V 4.0Ah MultiVolt battery, rapid charger, side handle, depth gauge, carry case




  Specifications

  Volts	36V
  Bit Shank	SDS Plus
  Motor Type	Brushless
  Power Source	DC
  Modes	Hammer Drilling | Chipping | Drilling
  No Load Speed	0-950 RPM
  Impact Rate	0-4,300 RPM
  Impact Energy	2.3 ft-lbs
  Concrete Capacity	1-1/8"
  Steel Capacity	1/2"
  Wood Capacity	1-1/4"
  Variable Speed	Trigger
  LED Light	Equipped
  Auto Stop Mode	Equipped
  Speed Control	2
  Tool Length (w/ 36V 4.0Ah Battery)	17-9/32"
  Tool Width	3.3"
  Tool Height	9.1""
  Weight (Tool Body Only)	6.4 lbs
  Warranty	1-Year

  DATA SHEET DOWNLOADS

DH3628DDQ4M Operator Manual

DH3628DDQ4M Parts List
