Airboard Aero - Breathable* Insulation
Combined Continuous Insulation + WRB** Solution

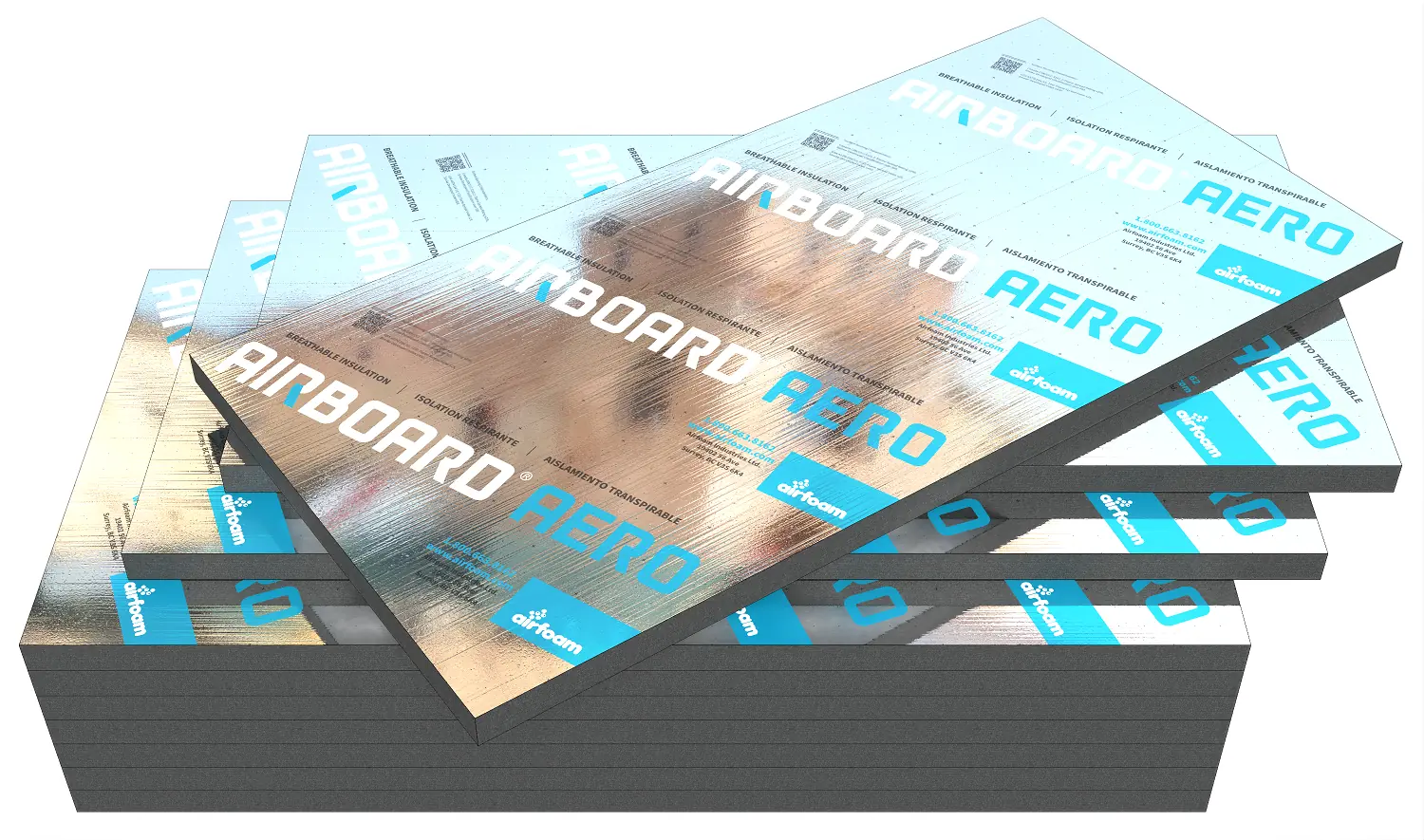

Airboard® AERO is graphite-enhanced polystyrene (GPS) insulation with advanced facers for outstanding, multi-function performance and fast installation.
The reflective metallic facers are perforated for breathability* and can boost the effective insulation value when acting as radiant heat barrier against air spaces.
Airboard® AERO can also serve as a water-resistive barrier (WRB)** in low-rise buildings when the seams, penetrations and transitions are sealed & flashed.
Benefits
Exceptional Insulation Value
Thinner continuous insulation (c.i.) layer due to very high Insulation Values with zero thermal drift, combined with breathability*, water-resistive**, and radiant heat barrier properties
Cozy, Healthy Indoor Environments
Continuous insulation blanket with no formaldehyde nor off-gassing during normal use, while virtually eliminating the risk of condensation, rot and mold
A Breeze to Install

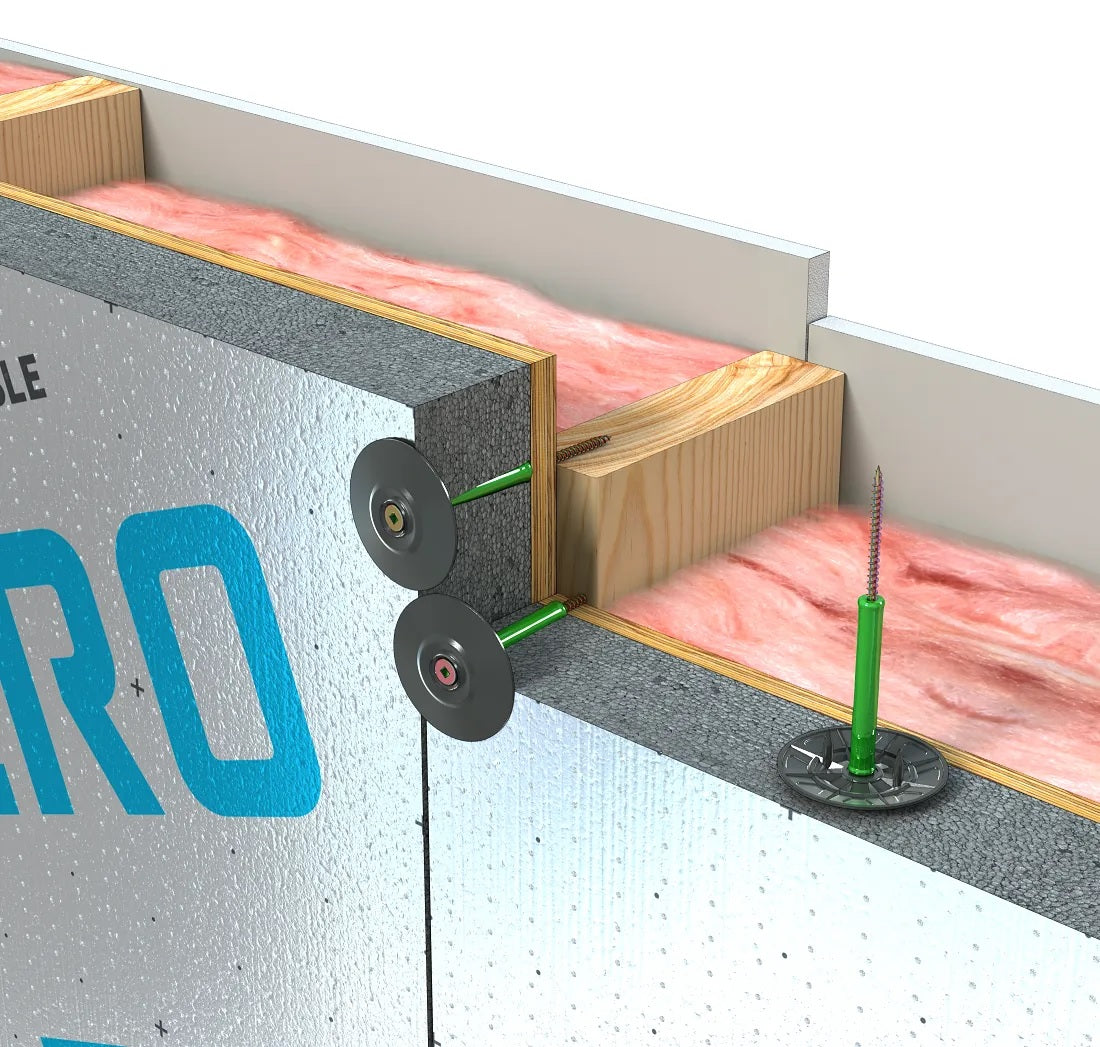

For high jobsite productivity, the boards are multi-purpose, large, lightweight & easy to cut, with markers for fastening and cutting. Lamination allows bending the boards for radius walls
Environmentally Responsible
Excellent durability & low embodied carbon while using air as insulator - not harmful gases such as HFC that's used in other insulation materials
Reduced Waste & Damage
Double-sided lamination greatly increases board strength & flexibility and keeps jobsites cleaner
Applications

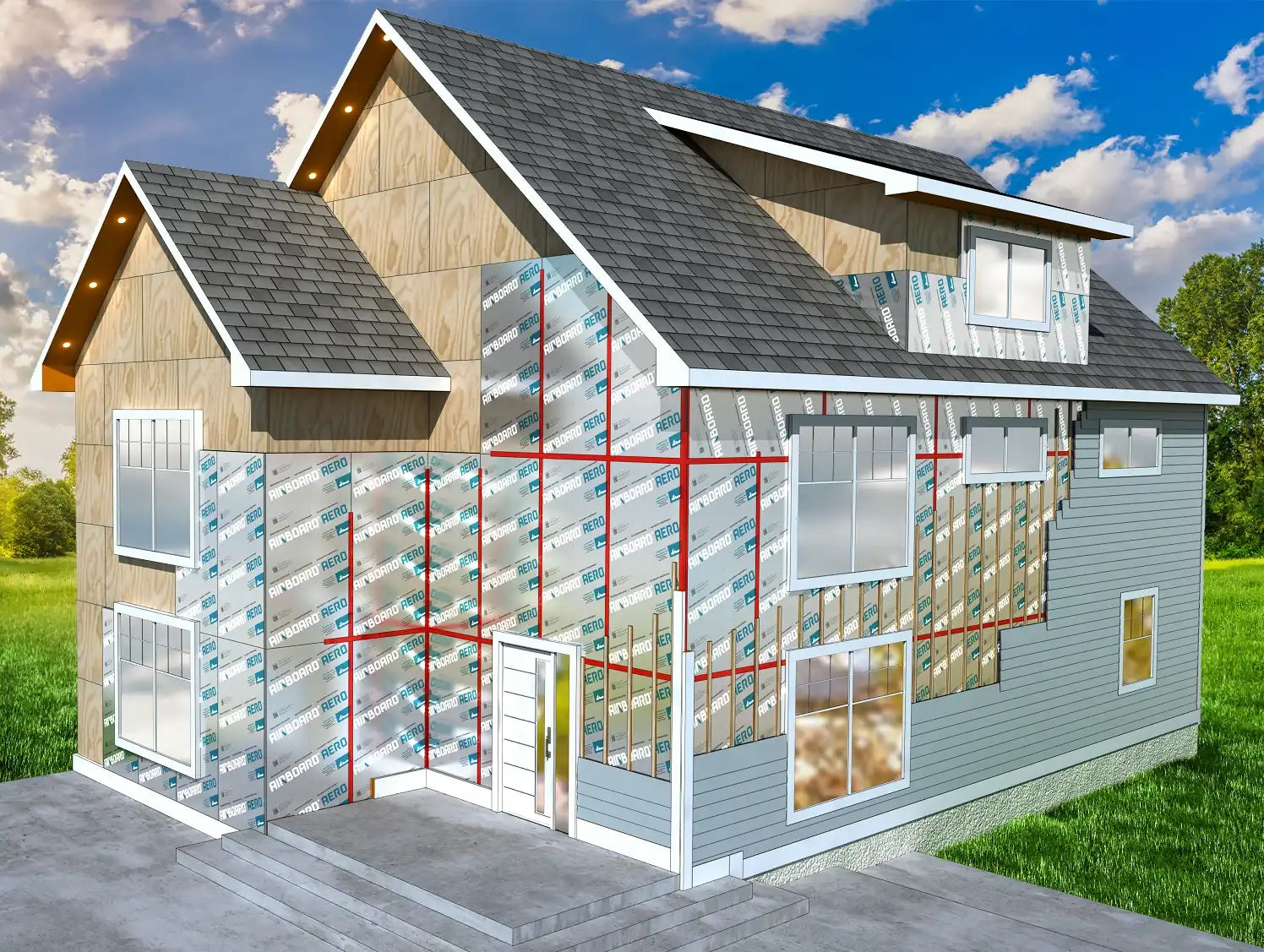

Breathable* continuous insulation, plus water-resistive barrier** when sealed, for new construction & retrofits of above-grade walls and more in low-rise buildings.
"Breathable" refers to relatively high water-vapor permeance*. In colder & most temperate climates, breathable insulation is installed on the exterior of above-grade walls. This allows drying to the exterior to greatly reduce the risk of condensation, rot and mold inside framed walls when paired with a vapor barrier on the interior. Note that in many hot & humid climates this is reversed - breathable layer on the interior, vapor barrier on the exterior.
Specify & Install
Airboard® AERO is Thermal Insulation CAN/ULC-S701.1, ASTM C578, ICC-ES AC12 with Surface Burning Characteristics CAN/ULC-S102.2, ASTM E84 (UL 723). Intertek Listed & Inspected
* Breathable Insulation Designs:
- Canada: Airboard® AERO at 2-⅛" [54mm] thick or less is relatively vapour-permeable with permeance ≥ 60ng/Pa·s·m² (i.e. not a vapour barrier).
- USA: Airboard® AERO at 2-⅛" thick or less is a Class III Vapor Retarder (1-10 perm) and a Class II Vapor Retarder (0.1-1 perm) for greater thicknesses. Note that Class I Vapor Barriers are ≤ 0.1 perm in the US.
** Water-Resistive Barrier (WRB) Designs:

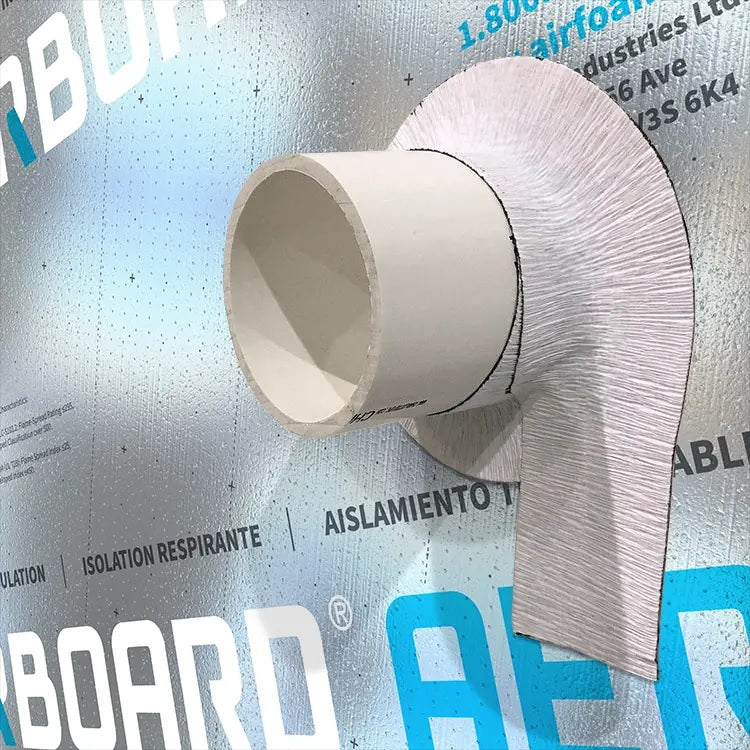

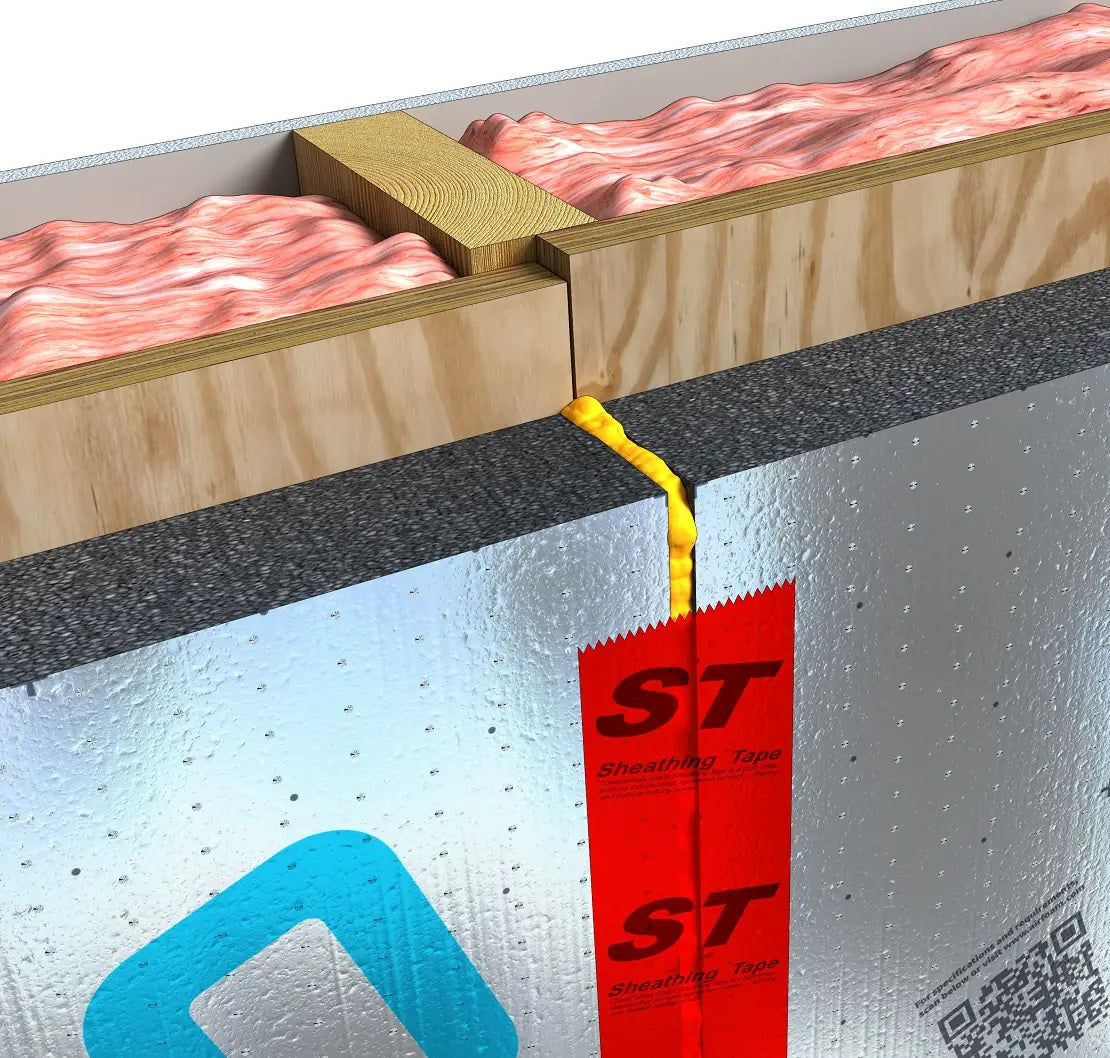

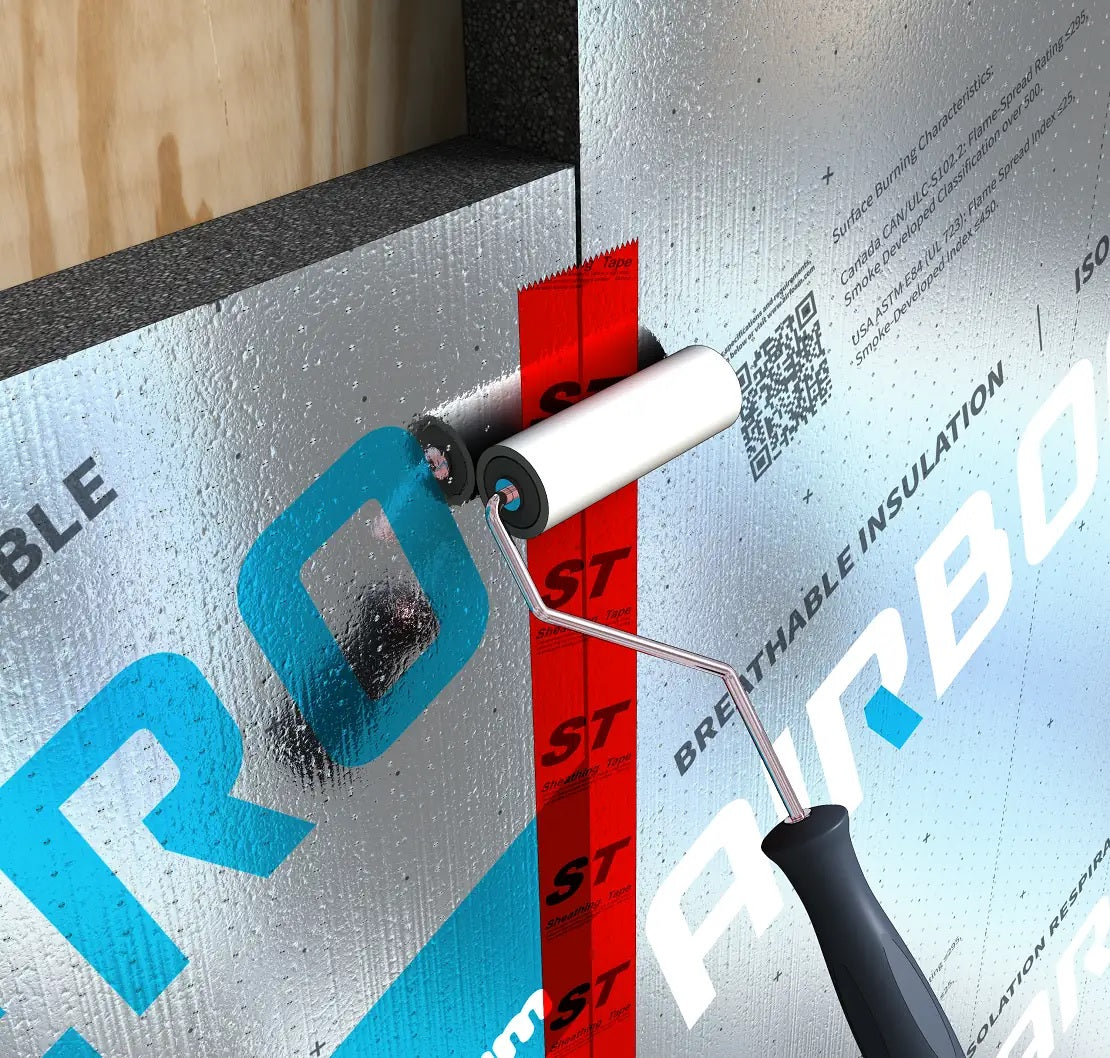

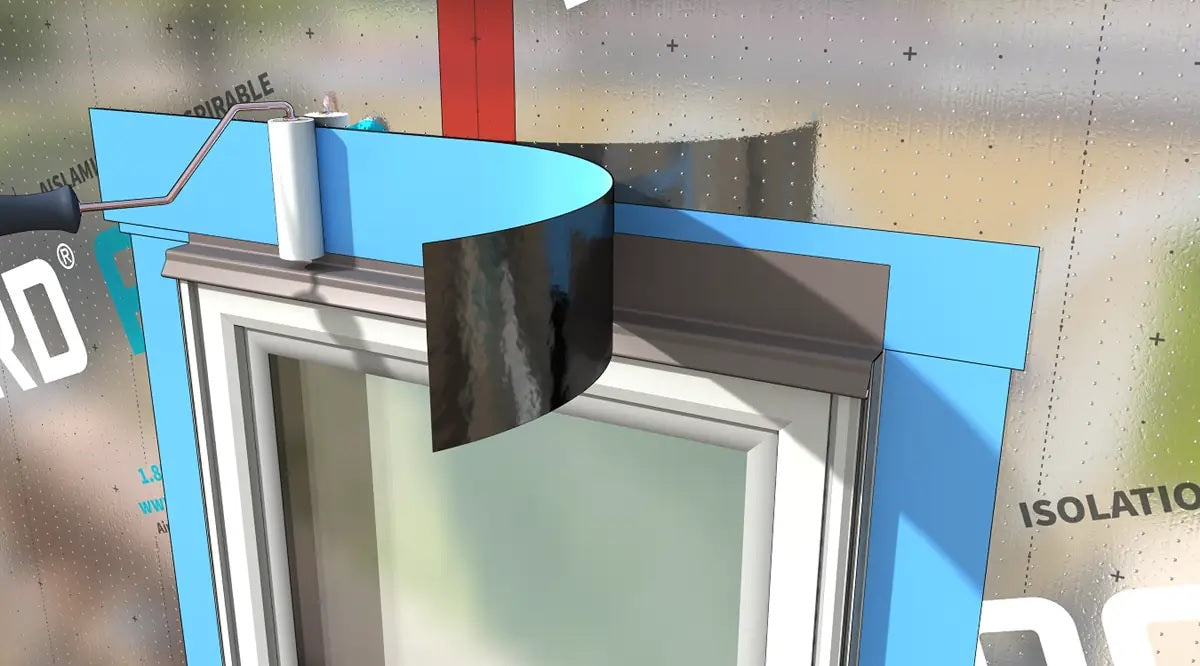

- Board joints, penetrations and transitions must be adequately sealed and flashed.
- For Canadian Part 9 buildings, Airboard® AERO with joints sealed qualifies as Second Plane of Protection behind cladding per NBC 9.27.3.4. "Insulating Sheathing in lieu of Sheathing Membrane".
- Airboard® AERO resists bulk water penetration at levels exceeding CCMC 07102 (Section 6.4.5) and ASTM E2556 "Type I" WRB requirements.

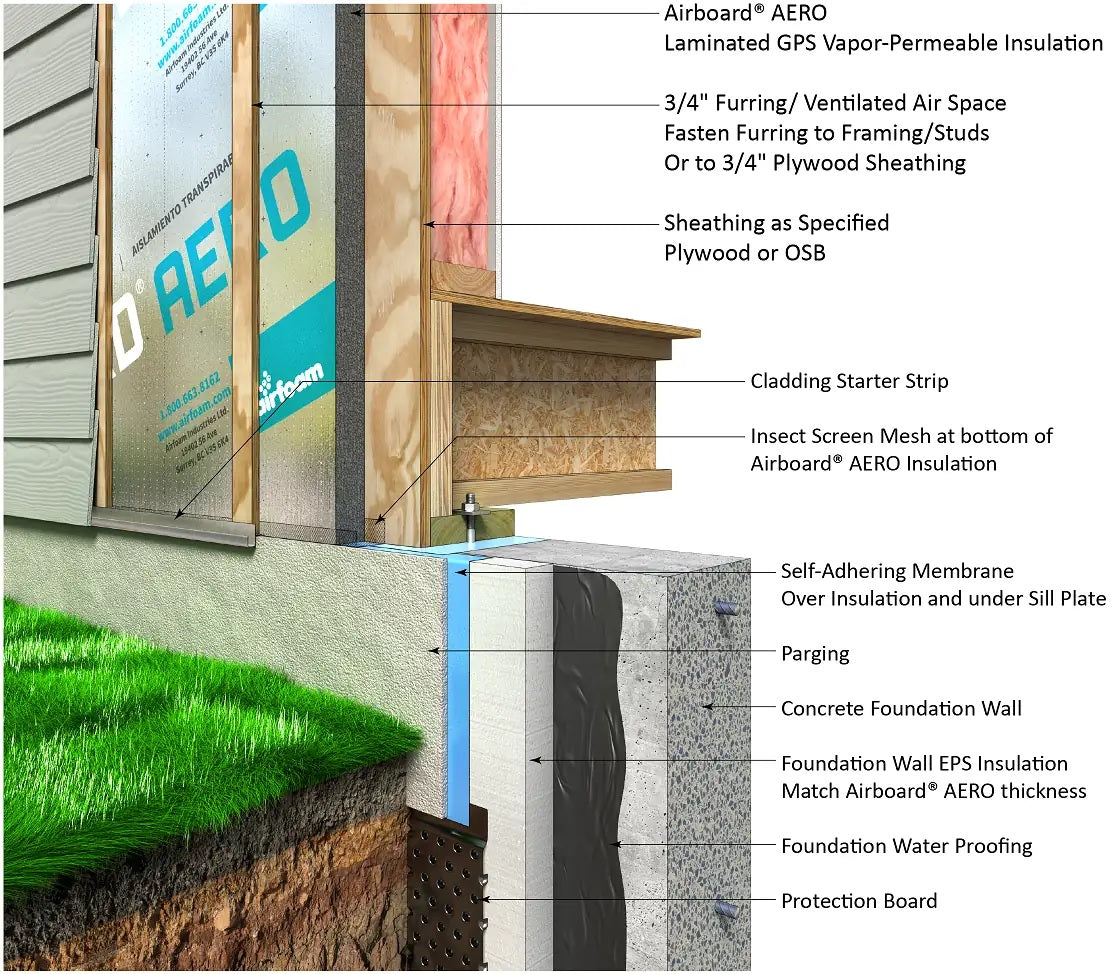

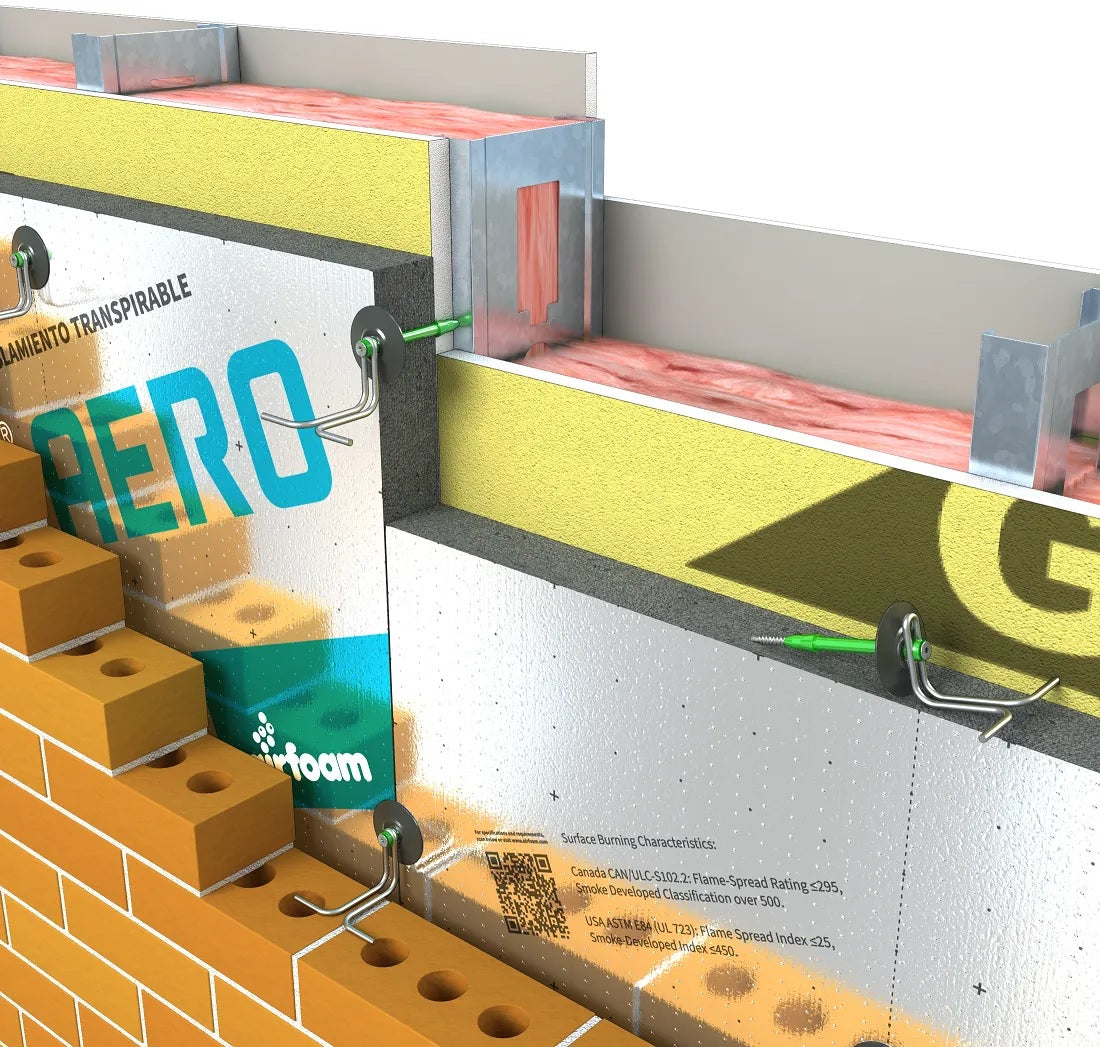

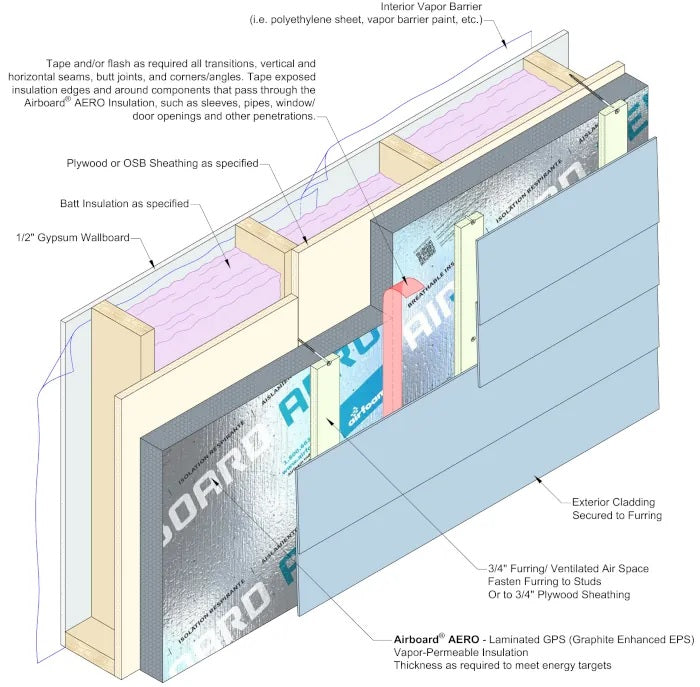

Wall Assemblies:
g for a Composite Wall Assembly with AERO c.i. CAN/ULC-S101, ASTM E119
with specific limitations for an Exterior Wall Assembly with AERO c.i.
Properties of Airboard® AERO Insulation
