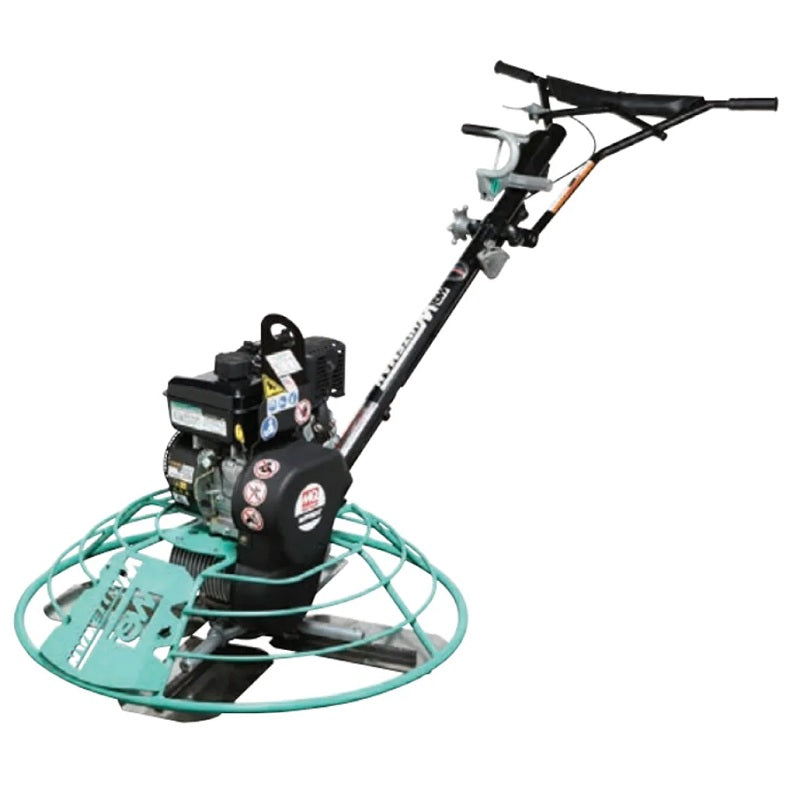

4-blade,36", Vanguard 200, 6.5 HP, Min 60-115 Max RPM blade speed
Our most popular mid-size trowel. Reliability and performance are trademarks of this industry-proven trowel. Vanguard 200 engine comes with a cyclonic air cleaner system, optimized starting down to -20F and extended service maintenance intervals
- 36-inch (915 mm) guard ring diameter
- Trowel covered by 1-year limited warranty, Vanguard engine covered by 3 + 1 year commercial warranty
- Front access panel provides quick access to trowel arms and blades
- Center mount lifting bale included
- Spider and thrust collar assembly design simplifies routine maintenance
- Gearbox features top quality components & large oil capacity for years of trouble-free performance
- Optimally balanced for smooth finishing
- Handles available with either QuickPitch or Standard (knob type) pitch control
| Clutch Type | Centrifugal | |
| No. of Blades | 4 | |
| Ring Diameter | 36 in | 914.4 mm |
| Rotor Speed | 60-115 RPM | |
| Handle Options | SXH QXH |
|
| Overall Length | 70 in | 1789 mm |
| Overall Width | 36 in | 915 mm |
| Overall Height | 41 in | 1044 mm |
| Operating Weight | 184 lb | 83.4 kg |
| Shipping Weight | 182 lb | 82.5 kg |
