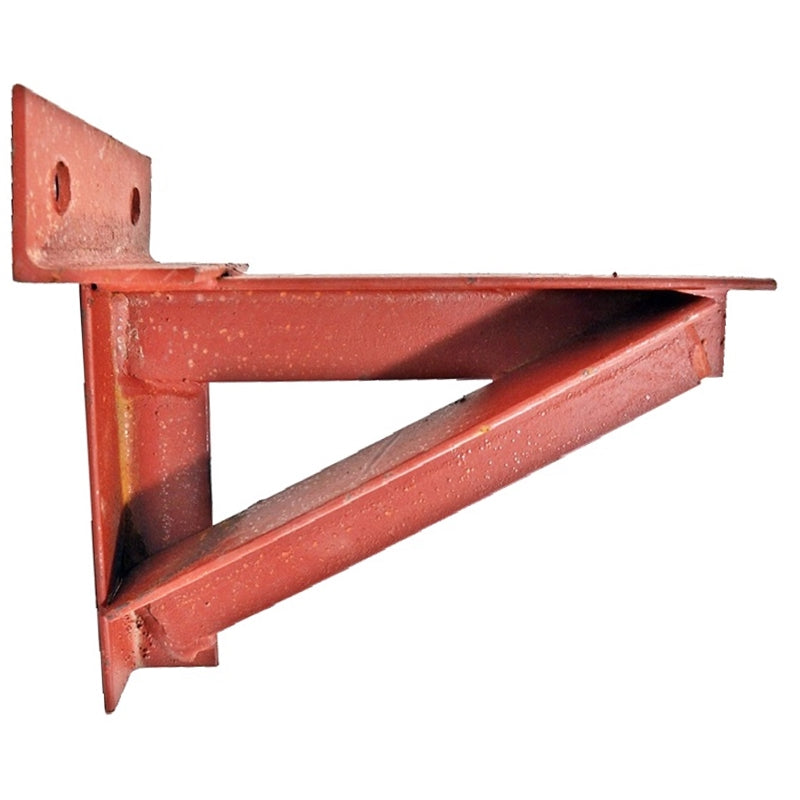

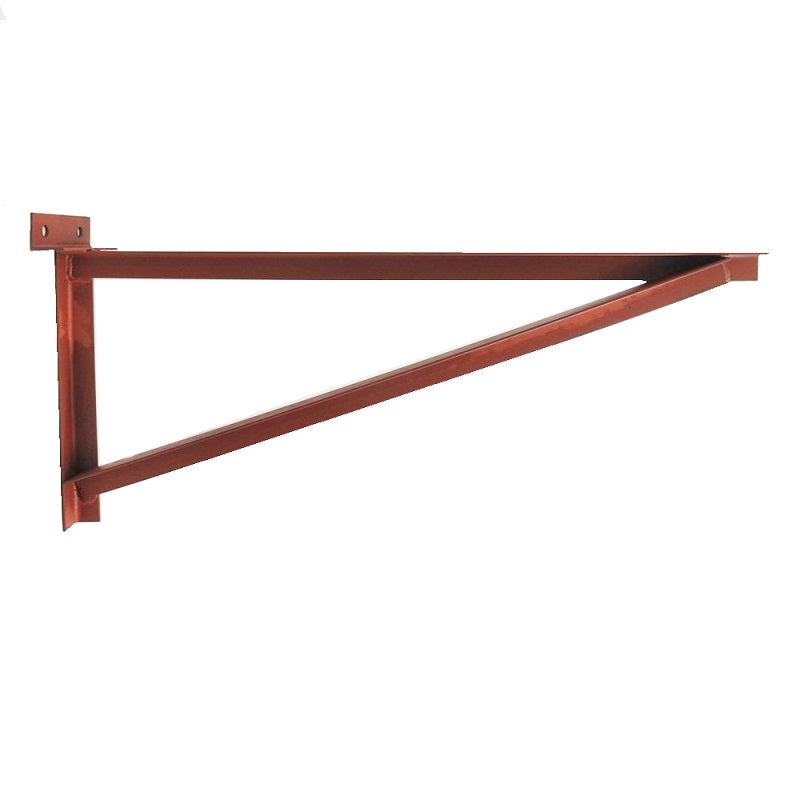

Our Engineered Metal Concrete Foundation Support Brackets come in multiple sizes to suit all precast step and deck installation situations. Due to their lightweight fabrication, our brackets are multi-functional and perfectly suited for applications on the front, side or rear of a home. These Foundation Concrete Support bracket sizes range from 1' to 10'.
Each bracket is manufactured in a 3/16" x 2" x 2" angle iron and the 9' and 10' brackets are made with 3/16" x 2.5" x 2.5" angle iron.

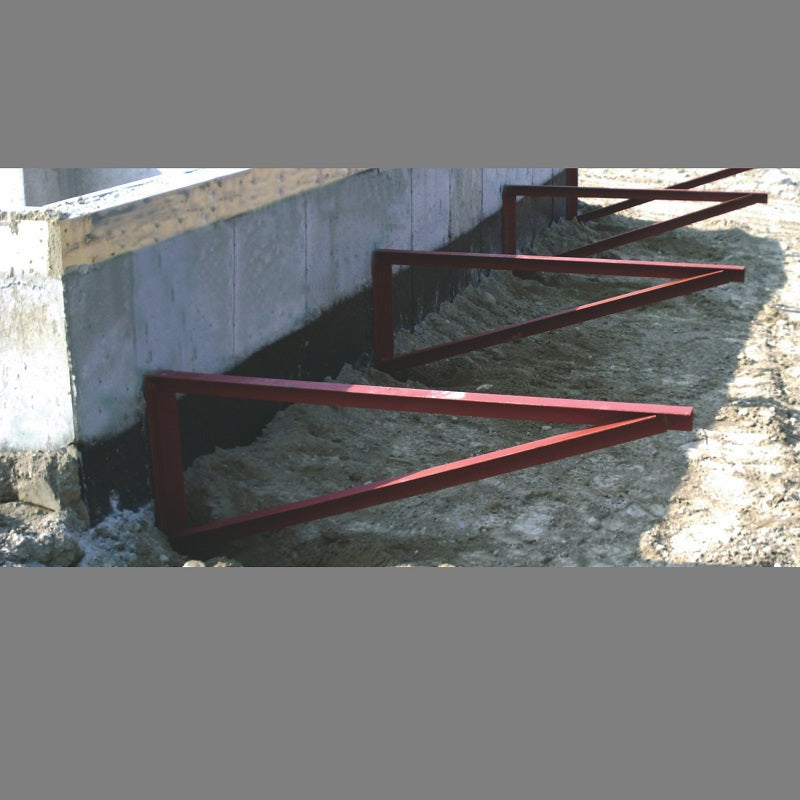

All of these Concrete Foundation Support Brackets have an 8" Flange on top with 2 holes that are 3/4" diameter for mounting using a 5/8" wedge anchor. The holes are spaced 5 1/2" from each other on the flange and are designed to support sidewalks, pads, garages, cantilevers, decks, pillars and other features that may need support.
These Concrete Foundation Support Brackets are manufactured here in Calgary in our WCB certified welding shop as per the engineering specifications and then they are protected with a rust resistant primer.
| Length In ( ft ) | Height In | Support Weight lbs |
| 12" (1') | 12" | 6400 |
| 24" (2') | 12" | 6400 |
| 36" (3') | 15" | 4100 |
| 48" (4') | 20" | 3000 |
| 60" (5') | 28" | 2300 |
| 72" (6') | 30" | 1600 |
| 84" (7') | 30" | 1100 |
| 96" (8') | 30" | 750 |
| 108" (9') | 38" | 650 |
| 120" (10') | 38" | 525 |
5/8" Drill bit - sold separately
5/8" x 5" Wedge anchor - sold separately
5/8" x 6" wedge anchor - sold separately
