Our Engineered Metal Concrete Foundation Support Brackets come in multiple sizes to suit all precast step and deck installation situations. Due to their lightweight fabrication, our brackets are multi-functional and perfectly suited for applications on the front, side or rear of a home. These Foundation Concrete Support bracket sizes range from 1' to 10'.

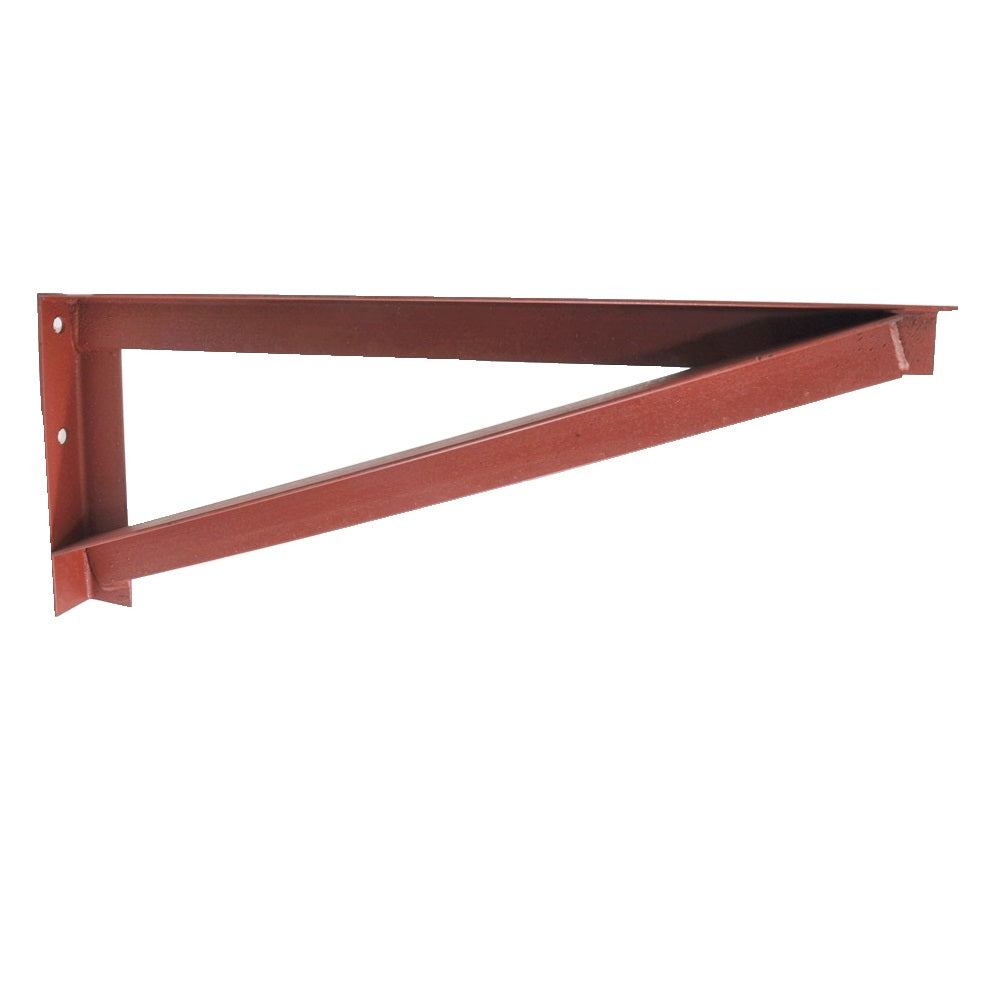

Each bracket is manufactured in a 3/16" x 2.5" x 2.5" angle iron. These Brackets do not have a flange, but have the holes in the Spine of the bracket. It's for this reason that these brackets are made with a heavier Angle Iron. With the holes in alignment with the bracket, these Concrete Support Brackets are perfect for use on wing walls and concrete columns.

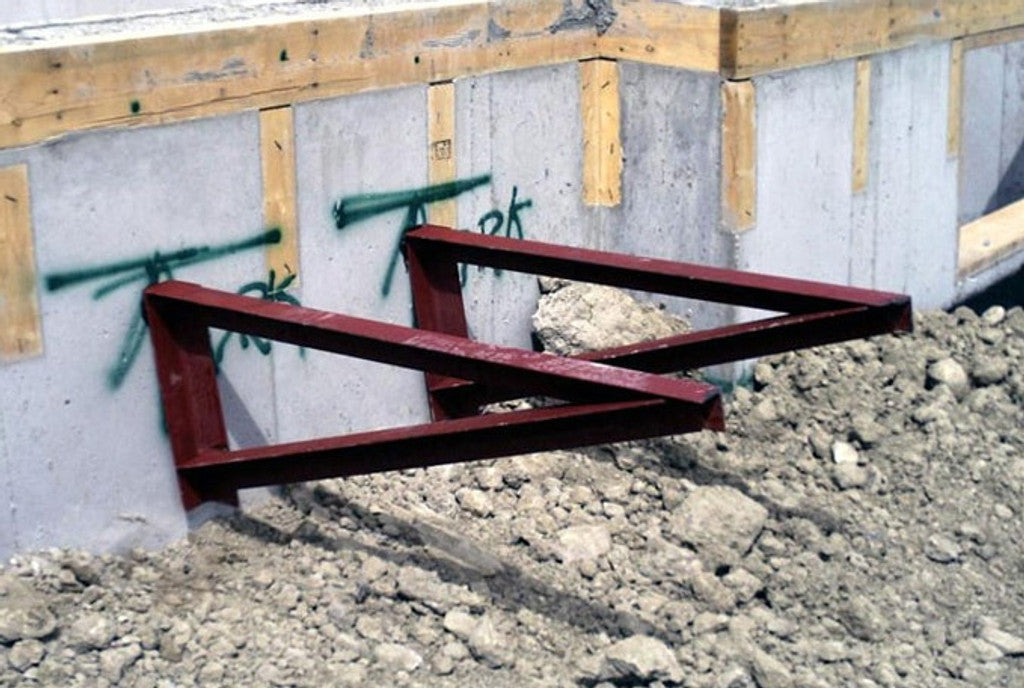

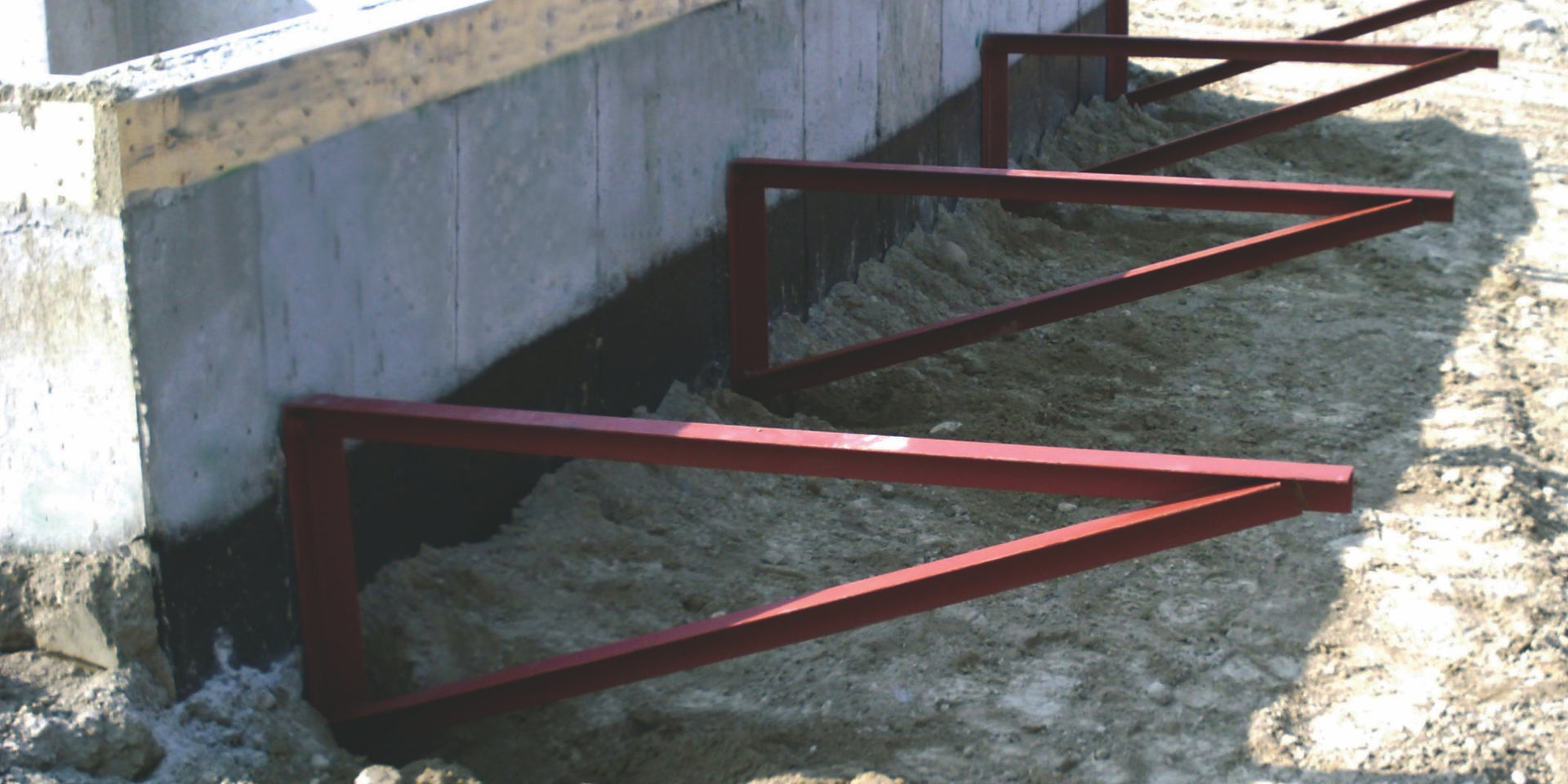

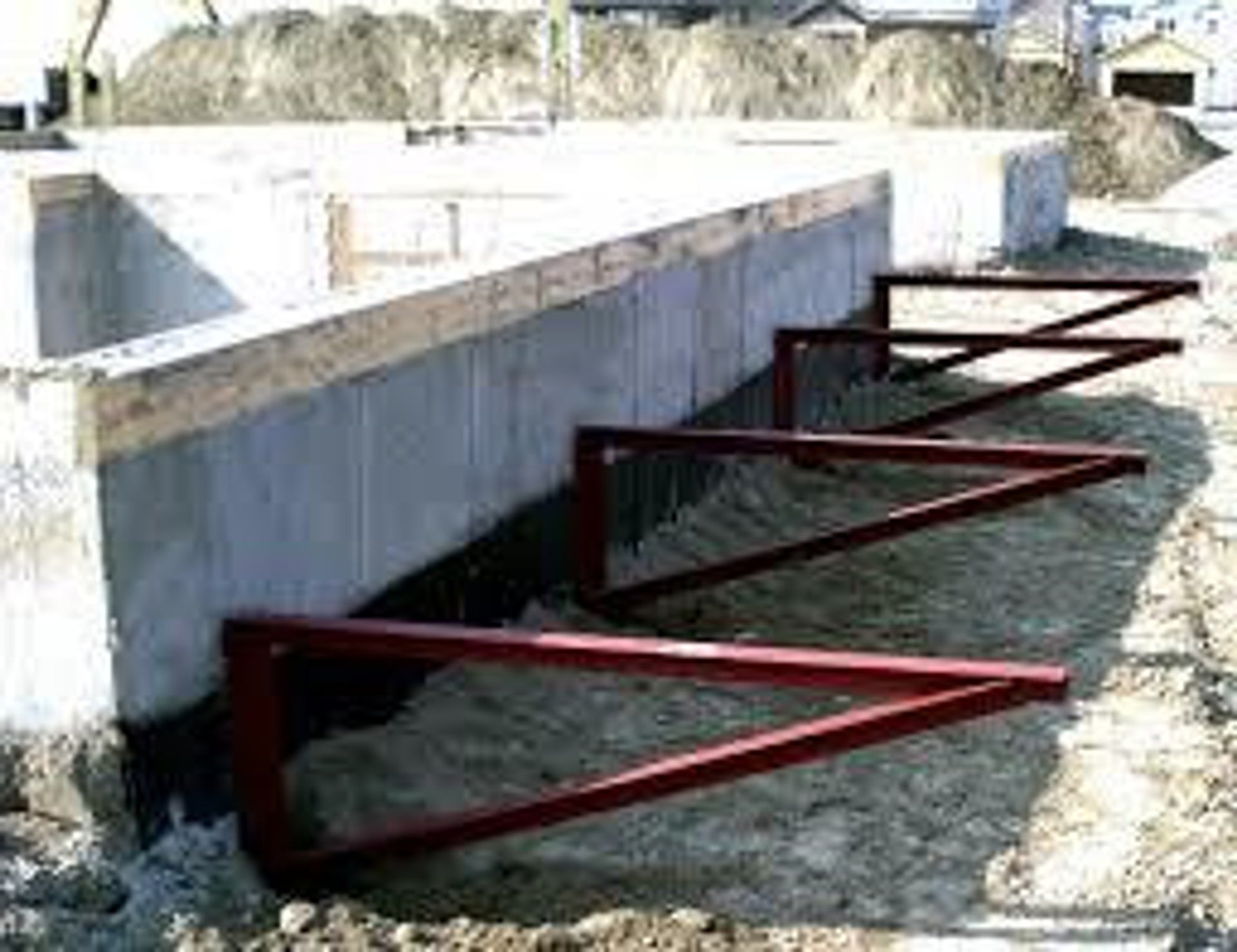

There are two holes in the spines of these brackets. One will be as close to the top of the bracket as possible while still allowing for the tightening of the wedge anchor. These Concrete Foundation Support Brackets are designed to support sidewalks, pads, garages, cantilevers, decks, pillars and other features that may need support.
These Concrete Foundation Support Brackets are manufactured here in Calgary in our WCB certified welding shop as per the engineering specifications and then they are protected with a rust resistant primer.
| Length In ( ft ) | Height In | Supporting Weight lbs |
| 36" (3') | 15" | 4100 |
| 48" (4') | 20" | 3000 |
| 60" (5') | 28" | 2300 |
5/8" Drill bit - sold separately
5/8" x 5" Wedge anchor - sold separately
5/8" x 6" wedge anchor - sold separately
