Our Engineered Metal Concrete Foundation Support Brackets come in multiple sizes to suit all precast step and deck installation situations. Due to their lightweight fabrication, our brackets are multi-functional and perfectly suited for applications on the front, side or rear of a home. These Foundation Concrete Support bracket sizes range from 3' to 8'. We also carry this bracket in 3.5' (42").
These Foundation Support Brackets Bolt to the foundation using a two 5/8" x 5" Wedge Anchors and are designed to support sidewalks, pads, garages, cantilevers, decks, pillars and other features that may need support.

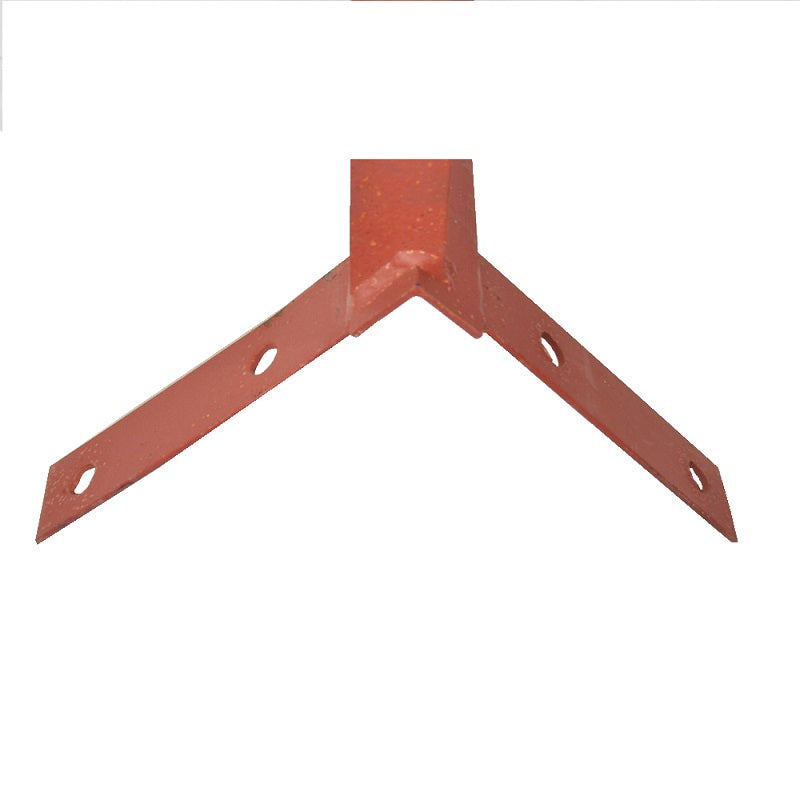

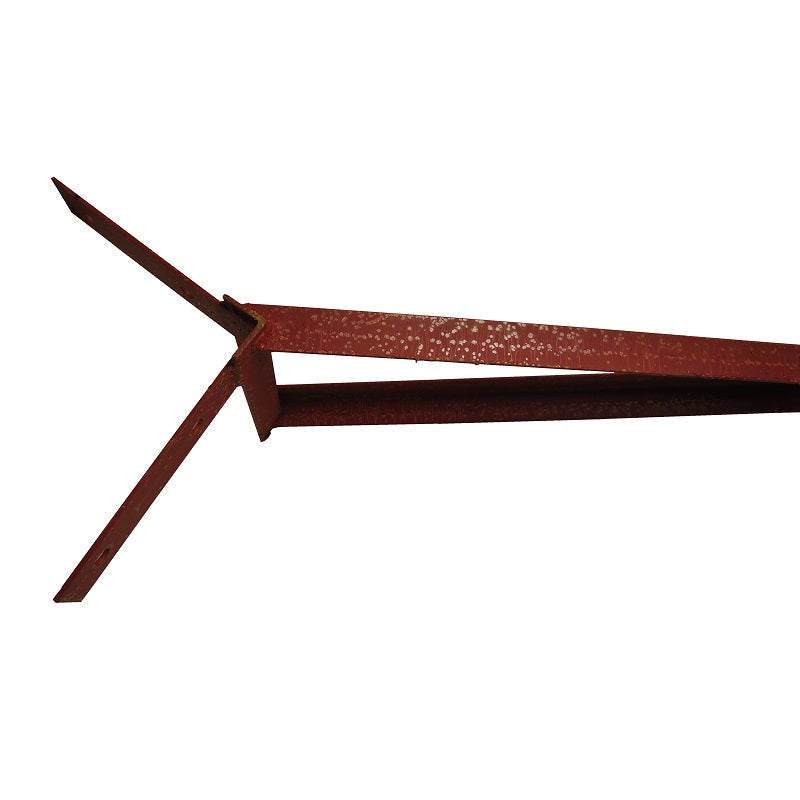

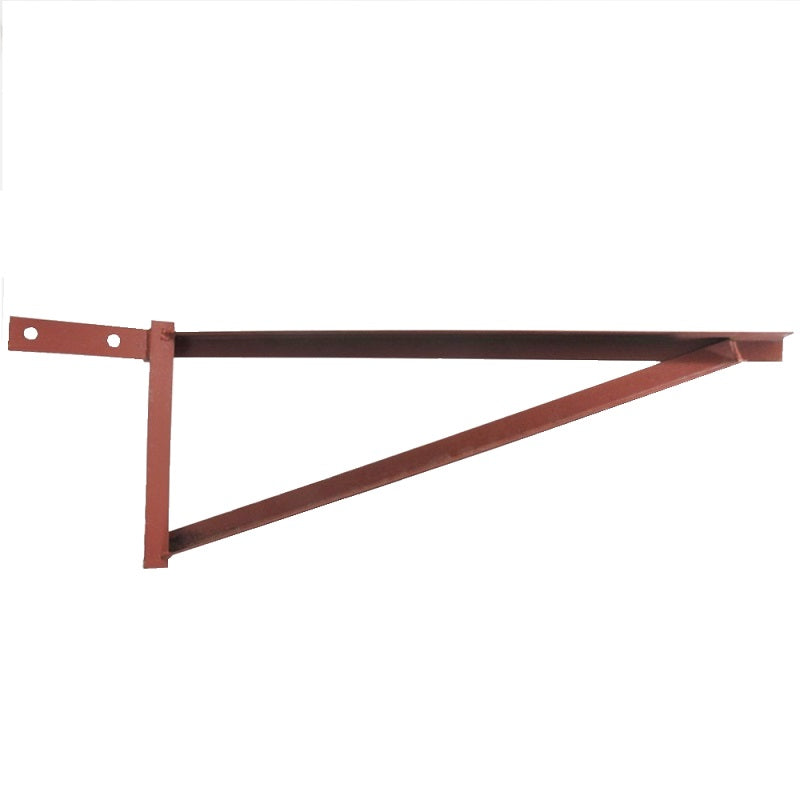

Each bracket is manufactured in 2" x 2" x 3/16" Angle Iron. 2 holes in two 3/16" x 2.5" flat Iron pieces with a 90° corner are mounted to the tops of these brackets for a total of 4 holes for mounting on corner brackets. That makes these perfect for mounting on the corners of foundations so the bracket sticks out at a 45° angle at the corner. Two Wedge anchors are still used on these brackets: 1 on the short hole and 1 on the far hole.
These foundation support brackets are manufactured here in Calgary in our WCB certified welding shop as per our engineering specifications and then they are protected with a rust resistant primer.
| Length In ( ft ) | Height In | Supporting Weight lbs |
| 36" (3') | 15" | 4100 |
| 42" (3.5') | 18" | 3600 |
| 48" (4') | 20" | 3000 |
| 60" (5') | 28" | 2300 |
| 72" (6') | 30" | 1600 |
| 84" (7') | 30" | 1100 |
| 96" (8') | 30" | 750 |
5/8" Drill bit - sold separately
5/8" x 5" Wedge anchor - sold separately
5/8" x 6" wedge anchor - sold separately
