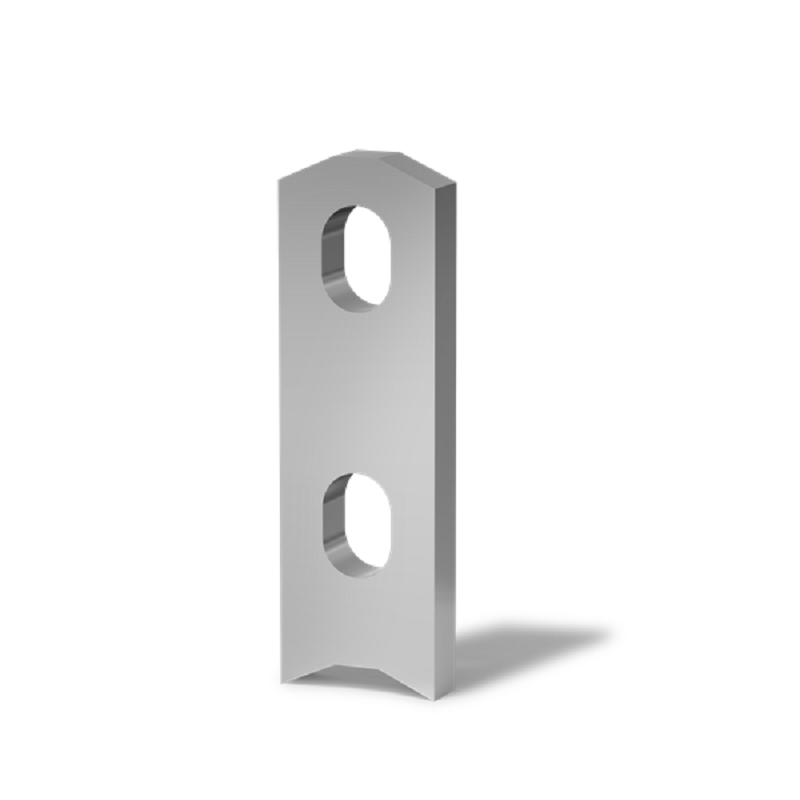

The Two-Hole Anchor is a low-profile insert optimized for stripping and handling of panels where spread-type anchors cannot be used. When used with a tension bar, the anchor can achieve high tension loads in low compressive strength, thin precast panels.
Item Specifications
Length | 4" |
Lifting Clutch | PLRC23T |
Recess Former | PLRM2 |
Safe Working Load | 4000 |
Safety Factor | 4:1 |
Size (T) | 2 |
Thickness | 3/8 |
Ultimate Mechanical Load Tension | 16000 |
Width | 1-1/4 |
Item Weight | 0.46 lbs per EA |
